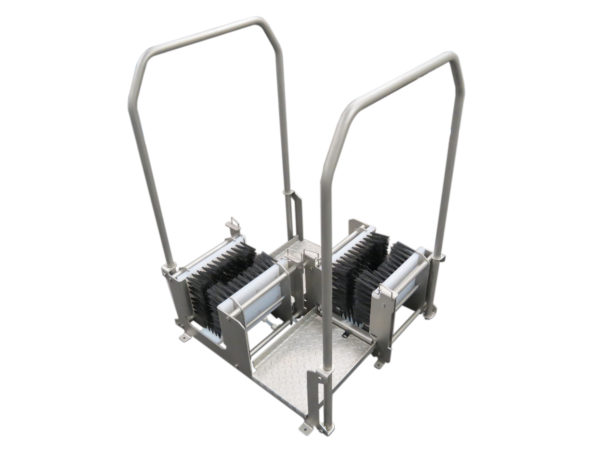

BSX200 Manual Walk Through Dual Boot Scrubber Unit
The BSX200 is a rugged, walk through, dual boot scrubber available in a wet or dry version. With the wet unit, the system is activated when a user steps onto the platform. Cleaning solution is sprayed onto the boot and brushes. We recommend using Alpet® No-Rinse Quat Sanitizer with the BSX200-W to aid in the cleaning of footwear prior to sanitizing (sanitization can only occur on pre-cleaned footwear). The user moves their boot back and forth through the brushes supplying the mechanical scrubbing action. The BSX200 is ideal for tight spaces and low traffic applications.
*Also available as a dry model
Features
- Solid member stainless-steel frame construction and hand rail
- Two removable sole brushes and eight removable vertical side brushes
Wet Version Only
- Spring actuated valve mounted under removable stainless-steel foot plate for spray activation
- Four stainless-steel spray bars apply chemistry through brushes
- Includes venturi injector kit
Connection Requirements
- 3/8” Nptf cold water connection, 50psi recommended
- No drain connection – open frame with no drain
