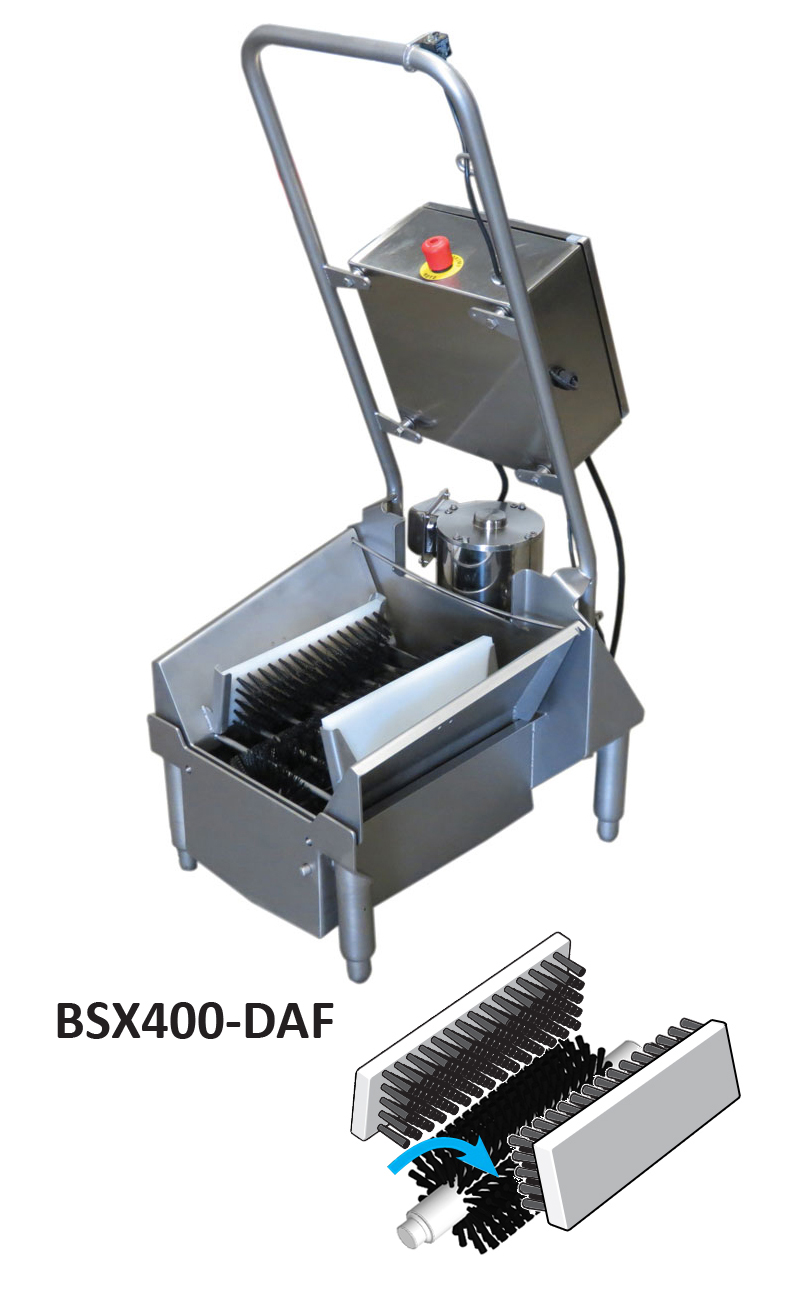

BSX400 Single Boot Scrubber Unit – Wet

The BSX400 is a wet, single boot scrubber. It uses two stationery side brushes and one rotating sole brush to thoroughly clean the boot. The user places one foot at a time into the unit and activates the system by grabbing the hand rail. Diluted cleaning solution is sprayed onto the brushes and transferred onto the boot from a stainless-steel venturi dilution valve and metering tip to provide the desired PPM. We recommend using Alpet® No-Rinse Quat Sanitizer with the BSX400 to aid in the cleaning of footwear prior to sanitizing (sanitization can only occur on pre-cleaned footwear). The BSX400 is ideal for tight spaces and low traffic applications.


  • Solid member stainless-steel frame construction and hand rail
  • One removable sole brush and two removable vertical side brushes
  • Two stainless-steel right angle gearboxes for vertical side brushes
  • Stainless-steel electrical enclosure with variable speed drive, timer and e-stop
  • Photo eye sensor mounted on handle for unit activation
  • Stainless-steel washdown rated 1/2 hp motor and worm gear reducer
  • Solenoid activated brush spray system with Venturi injector for sanitizer with flow rated at 1.5 Gpm
  • Removable stainless-steel access grate
  • Self draining tub with four adjustable feet

Connection Requirements

  • 110V ac, 15 amp electrical connection required
  • 3/8” Nptf cold water connection, 50psi recommended
  • 1.5” Tri-clamp drain connection
BSX400 Single Boot Scrubber Unit
