BSX600 Single Boot Scrubber Unit w/ Triple Rotating Brushes – Wet

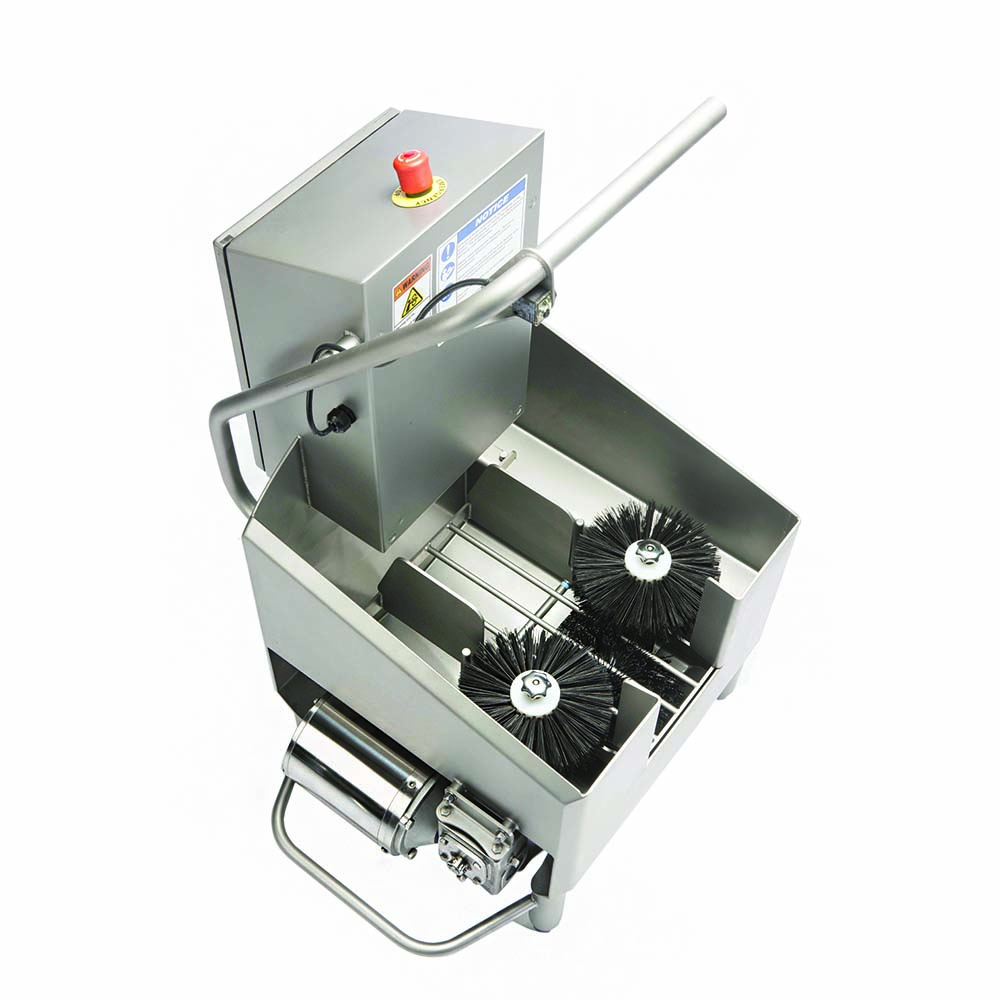

The BSX600 is a wet, single boot scrubber. The user places one foot at a time into the unit and activates the system by grabbing the handrail. Two rotating side brushes and one rotating sole brush clean the boot while cleaning solution and water is sprayed onto the brushes through a stainless-steel venturi dilution valve and metering tip to provide the desired PPM. We recommend using Alpet® No-Rinse Quat Sanitizer with the BSX600 to aid in the cleaning of footwear prior to sanitizing (sanitization can only occur on pre-cleaned footwear). The BSX600 is ideal for tight spaces and low traffic applications.



  • Solid member stainless-steel frame construction and handrail

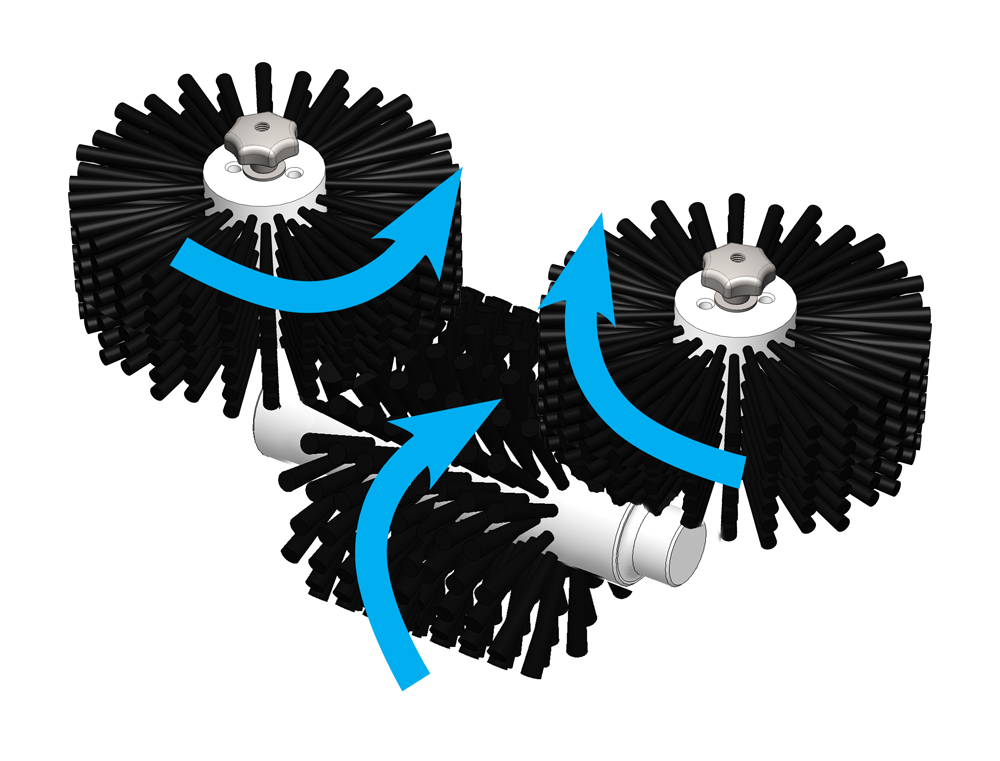

  • Three rotating brushes clean the boot along the edges and sole when the user places their foot in the unit
  • Two stainless-steel right-angle gearboxes for vertical side brushes
  • Stainless-steel electrical enclosure with variable speed drive, timer, and e-stop
  • Photo eye sensor mounted on handle for unit activation
  • Stainless-steel washdown rated 1/2 hp motor and worm gear reducer
  • Solenoid activated brush spray system with Venturi injector for sanitizer with flow rated at 1.5 Gpm
  • Removable stainless-steel access grate
  • Self-draining tub with four adjustable feet


Connection Requirements

  • 110V ac, 15-amp electrical connection required
  • 3/8” NPTF cold water connection, 50psi recommended
  • 1.5” Tri-clamp drain connection
