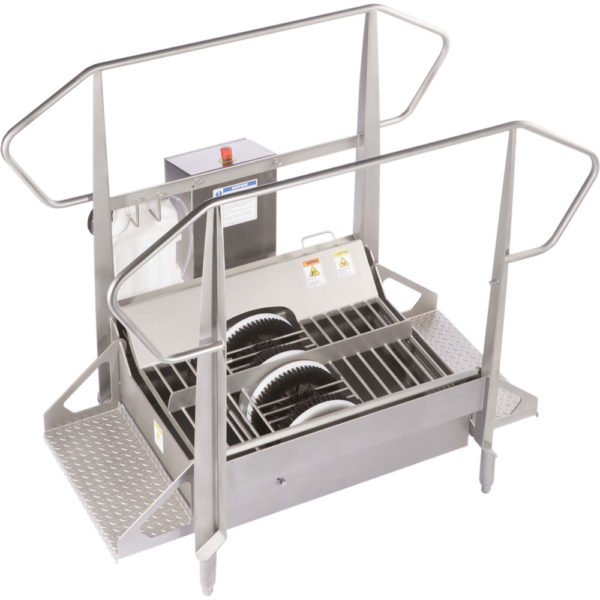

BSX800 Compact Walk-Through Boot Scrubber Unit – Wet

The BSX800 is a wet, walk-through, dual boot scrubber. The user activates the system by stepping onto the platform. Diluted cleaning solution is sprayed onto rotating brushes and transferred onto the boots from a stainless-steel venturi dilution valve and metering tip to provide the desired PPM. We recommend using Alpet® No-Rinse Quat Sanitizer with the BSX800 to aid in the cleaning of footwear prior to sanitizing (sanitization can only occur on pre-cleaned footwear). The BSX800 uses four rotating side disc brushes and two short horizontal sole brushes, while the BSX800-V uses three vertical rotating brushes and two horizontal sole brushes. Both have a small footprint and are ideal for tight spaces and medium traffic applications.



  • Solid member stainless-steel frame construction
  • Hinged stainless steel access grate, and two removable stainless-steel steps
  • Brush assemblies remove easily

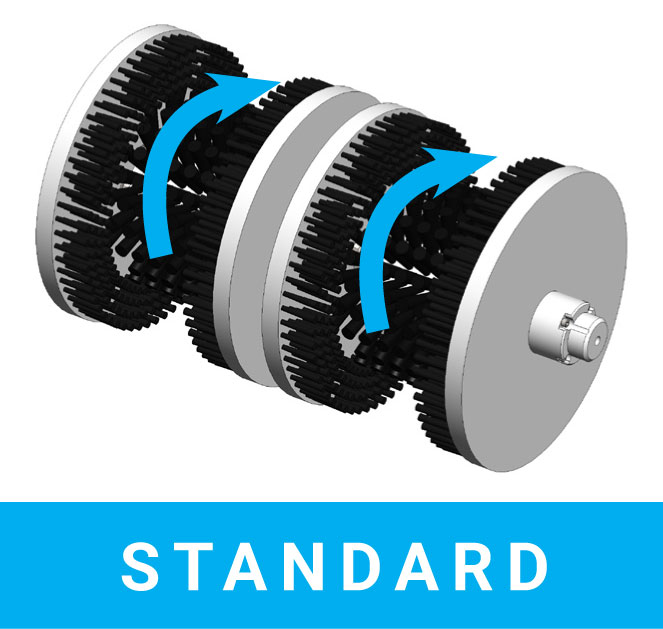

  • BSX800: Four side disc brushes and two horizontal sole brushes

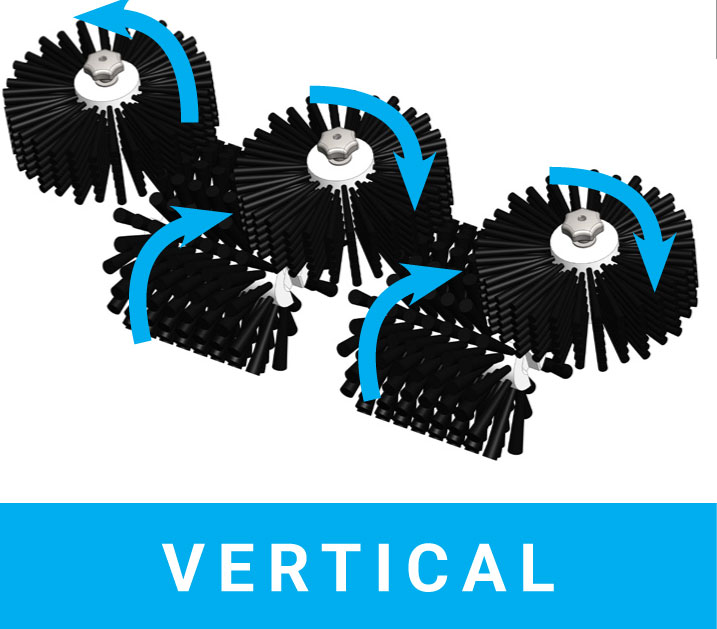

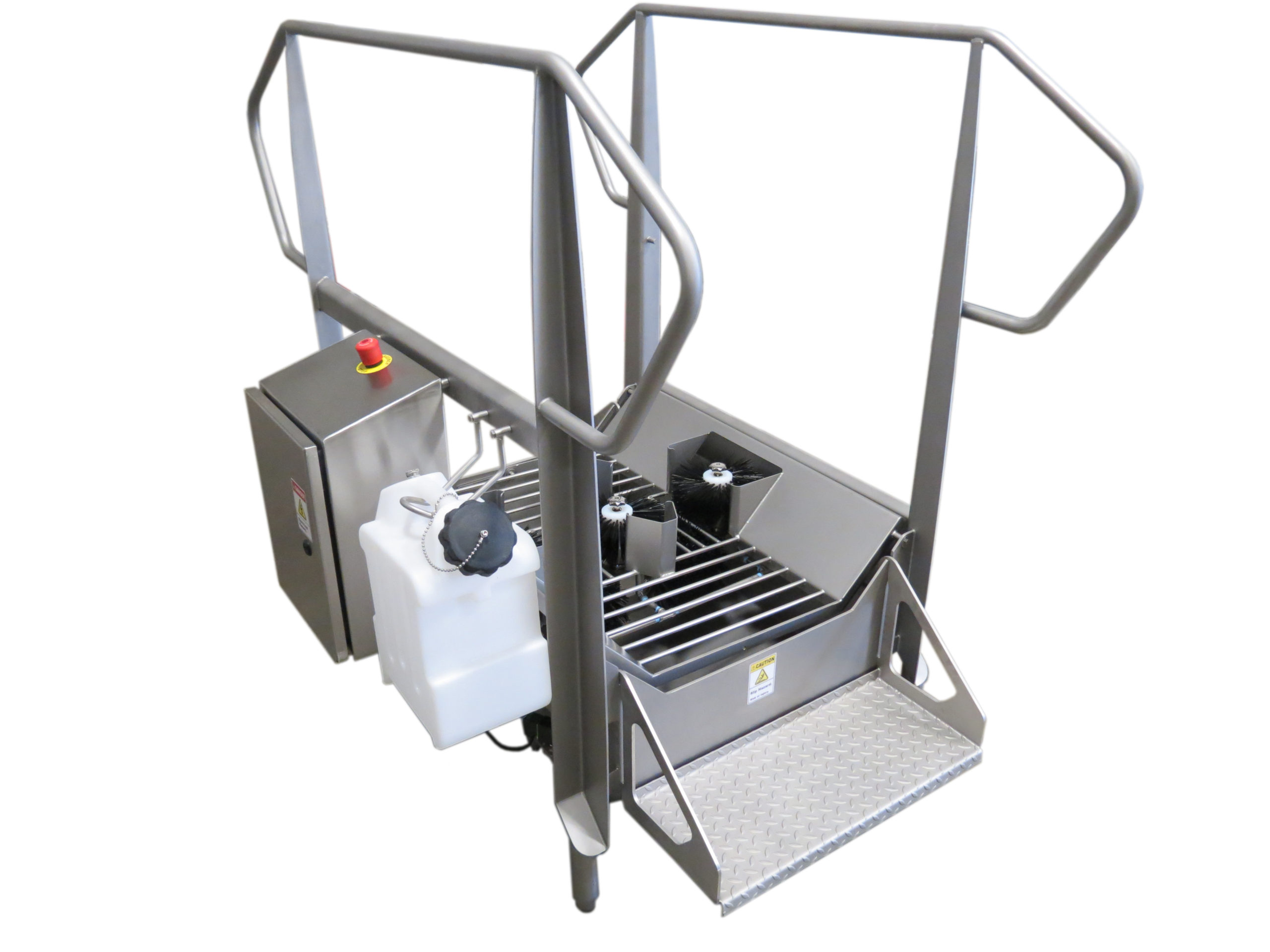

  • BSX800V: Three vertical brushes and two horizontal sole brushes
  • Stainless-steel electrical enclosure with variable speed drive, timer and e-stop
  • Proximity sensor and spring-loaded grate for unit activation
  • One stainless-steel washdown rated 1/2hp Motor and worm gear reducer
  • Self-draining tub with four adjustable sanitary leveling feet
  • Solenoid activated brush spray system with Venturi injector for chemistry with flow rated at 1.5 GPM

Connection Requirements

  • 110V ac, 15-amp electrical connection required
  • 3/8” NPTF cold water connection, 50psi recommended
  • 2.5” Tri-clamp drain connection
